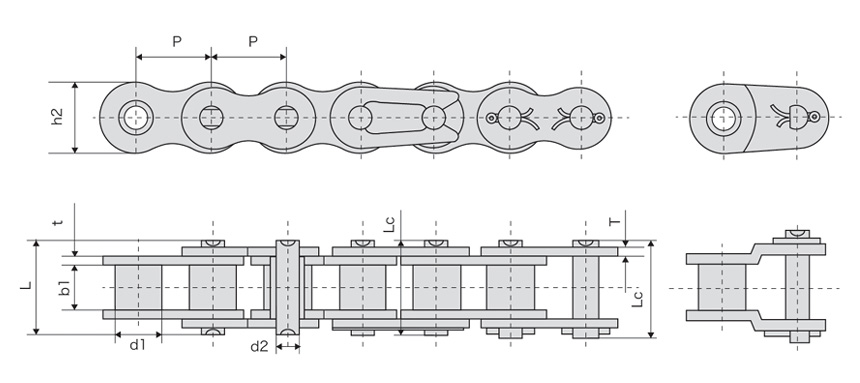

| 链号 | 节距 | 滚子直径 | 内节内宽 | 轴销直径 | 轴销长度 | 内片高度 | 片度 | 极限拉伸载荷 | 平均拉伸载荷 | 每米长重 | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Q(min) | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
| 04BSS-1 | 6.000 | 4.00 | 2.80 | 1.85 | 6.80 | 7.8 | 5.00 | 0.60 | 2 | 2 | 0.11 |
| 05BSS-1 | 8.000 | 5.00 | 3.00 | 2.31 | 8.20 | 8.9 | 7.10 | 0.80 | 3.00 | 3.5 | 0.20 |
| *06BSS-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.20 | 1.20 | 5.40 | 6.2 | 0.41 |
| 08BSS-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.2 | 11.80 | 1.50 | 10.80 | 12 | 0.69 |
| 10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.9 | 14.70 | 1.70 | 13.44 | 14.5 | 0.93 |
| 12BSS-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50 | 24.2 | 16.00 | 1.80 | 17.40 | 18.5 | 1.15 |
| 16BSS-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10 | 37.4 | 21.00 | 4.0/3.0 | 3.60 | 40 | 2.71 |
| 20BSS-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30 | 45.0 | 26.40 | 4.0 | 57.00 | 59 | 3.70 |
| 24BSS-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40 | 57.8 | 33.20 | 6.0/4.8 | 96.00 | 104 | 7.10 |
| 28BSS-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10 | 69.5 | 36.70 | 7.5/6.0 | 120.00 | 120 | 8.50 |
| 32BSS-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00 | 71.0 | 42.00 | 7.0/6.0 | 150.00 | 150 | 10.25 |
