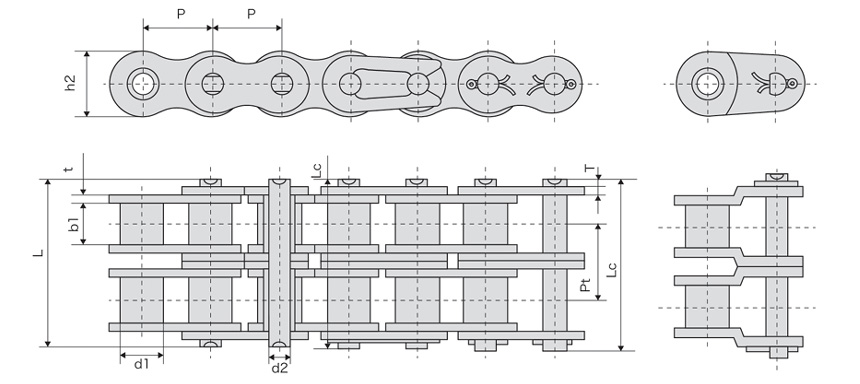

| 链号
|
节距 | 滚子直径 | 内节内宽 | 销轴直径 | 销轴长度 | 内片高度 | 片厚 | 中心距 | 破断荷 | 每米长重 | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | t/T(max) | Pt | Q(min) | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
| 05BSS-2 | 8.000 | 5.00 | 3.00 | 2.31 | 13.9 | 14.5 | 7.10 | 0.80 | 5.64 | 5.07 | 0.33 |
| *06BSS-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.4 | 24.4 | 8.20 | 1.20 | 10.24 | 11 | 0.77 |
| 08BSS-2 | 12.700 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.80 | 1.50 | 13.92 | 20.8 | 1.34 |
| 10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 14.70 | 1.670 | 16.59 | 28.9 | 1.84 |
| 12BSS-2 | 19.050 | 12.07 | 11.68 | 5.72 | 42.0 | 43.6 | 16.00 | 1.80 | 19.46 | 37.6 | 2.31 |
| 16BSS-2 | 25.400 | 15.88 | 17.02 | 8.28 | 68.0 | 69.3 | 21.00 | 4.0/3.0 | 31.88 | 68.9 | 5.42 |
| 20BSS-2 | 31.750 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 26.40 | 40 | 36.45 | 110.5 | 7.20 |
| 24BSS-2 | 38.100 | 25.40 | 25.40 | 14.63 | 101.7 | 106.2 | 33.20 | 6.0/4.8 | 48.36 | 182 | 13.40 |
| 28BSS-2 | 44.450 | 27.94 | 30.99 | 15.90 | 124.6 | 129.1 | 36.70 | 7.5/6.0 | 59.56 | 234 | 16.60 |
| 32BSS-2 | 50.800 | 29.21 | 30.99 | 17.81 | 124.6 | 129.6 | 42.00 | 7.0/6.0 | 58.55 | 146 | 21.00 |
