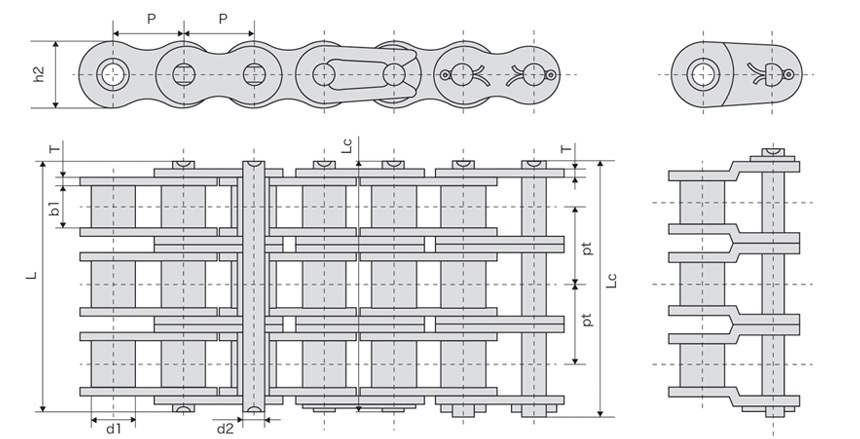

| 链号 | 链号 | 节距 | 滚子直径 | 内节内宽 | 销轴直径 | 销轴长度 | 内链板高度 | 链板厚度 | 排距 | 极限拉伸载荷 | 平均拉伸载荷 | 每米长重 | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Pt | Q(min) | Q0 | q | ||
| mm | mm | mm | mm | mmm | mm | mm | mm | mm | kN | kN | kg/m | ||
| *04CSS-3 | *25SS-3 | 6.350 | 3.30 | 3.18 | 2.31 | 21.0 | 21.5 | 6.00 | 0.80 | 6.40 | 6.30 | 7.56 | 0.44 |
| *06CSS-3 | *35SS-3 | 9.525 | 5.08 | 4.77 | 3.58 | 32.7 | 33.5 | 9.00 | 1.30 | 10.13 | 14.22 | 17.16 | 1.05 |
| 08ASS-3 | 40SS-3 | 12.700 | 7.95 | 7.85 | 3.96 | 45.4 | 46.6 | 12.00 | 1.50 | 14.38 | 25.38 | 30.00 | 1.90 |
| 10ASS-3 | 50SS-3 | 15.875 | 10.16 | 9.40 | 5.08 | 57.0 | 58.5 | 15.09 | 2.03 | 18.11 | 39.96 | 46.68 | 3.09 |
| 12ASS-3 | 60SS-3 | 19.050 | 11.91 | 12.57 | 5.94 | 71.5 | 73.3 | 18.00 | 2.42 | 22.78 | 57.24 | 66.66 | 4.54 |
| 16ASS-3 | 80SS-3 | 25.400 | 15.88 | 15.75 | 7.92 | 91.7 | 93.6 | 24.00 | 3.25 | 29.29 | 102.06 | 119.04 | 7.89 |
| 20ASS-3 | 100SS-3 | 31.750 | 19.05 | 18.90 | 9.53 | 112.2 | 116.3 | 30.00 | 4.00 | 35.76 | 159.30 | 185.76 | 11.77 |
| 24ASS-3 | 120SS-3 | 38.100 | 22.23 | 25.22 | 11.10 | 141.4 | 145.2 | 35.70 | 4.80 | 45.44 | 228.60 | 262.32 | 17.53 |
| 28ASS-3 | 140SS-3 | 44.450 | 25.40 | 25.22 | 12.70 | 152.2 | 156.8 | 41.00 | 5.60 | 48.87 | 342.72 | 355.98 | 22.20 |
| 32ASS-3 | 160SS-3 | 50.800 | 28.58 | 31.55 | 14.27 | 181.8 | 186.6 | 47.80 | 6.40 | 58.55 | 408.24 | 468.36 | 30.02 |
| 36ASS-3 | 180SS-3 | 57.150 | 35.71 | 35.48 | 17.46 | 204.4 | 210.2 | 53.60 | 7.20 | 65.84 | 504.42 | 590.16 | 38.22 |
| 40ASS-3 | 200SS-3 | 63.500 | 39.68 | 37.85 | 19.85 | 223.5 | 230.4 | 60.00 | 8.00 | 71.55 | 636.84 | 730.68 | 49.03 |
| 48ASS-3 | 240SS-3 | 76.200 | 47.63 | 47.35 | 23.81 | 271.3 | 278.6 | 72.39 | 9.50 | 87.83 | 918.54 | 1053.90 | 71.60 |
